- Product List
- Product Details
- Category
- Part No.
- Description
- Data Rate
- WaveLength
- Reach
- Temp.
- Power Consumption
-
1.6T
- MTRO-D5F8CB OSFP DR8 8x200 Gbit/s 1310nm 500m 0~70℃ <30w
- MTRO-D5F8CL OSFP DR8 LPO 8x200 Gbit/s 1310nm 500m 0~70℃ <10w
-
800G
- MTRO-D5F6C OSFP DR8 8x106.25Gbps 1310nm 500m 0~70℃ <14W
- MTRO-12F6C OSFP SR8 53.125 GBd 850nm 100m 0~70°C <14W
- MTRO-F6F6C OSFP 2XFR4 8x106.25Gbps 1271/1331nm 2km 0-70℃ <14W
- MQD-G7F6C QSFP-DD 2XLR4 8x106.25Gbps 1271/1291/1311/1331nm 10km 0-70℃ <16W
- ETRC-385C OSFP AEC 8x106.25Gbps / 5m 0~70℃ <10w
- ETRC-185C QSFP-DD AEC 8x106.25Gbps / 5m 0~70℃ <10w
-
400G
- MQD-36F2C QSFP-DD DR4+ 8x53.125Gb/s 1310nm 2km 0-70℃ <11w
- MQD-35F2C QSFP-DD DR4 8x53.125Gb/s 1310nm 500m 0-70℃ <11w

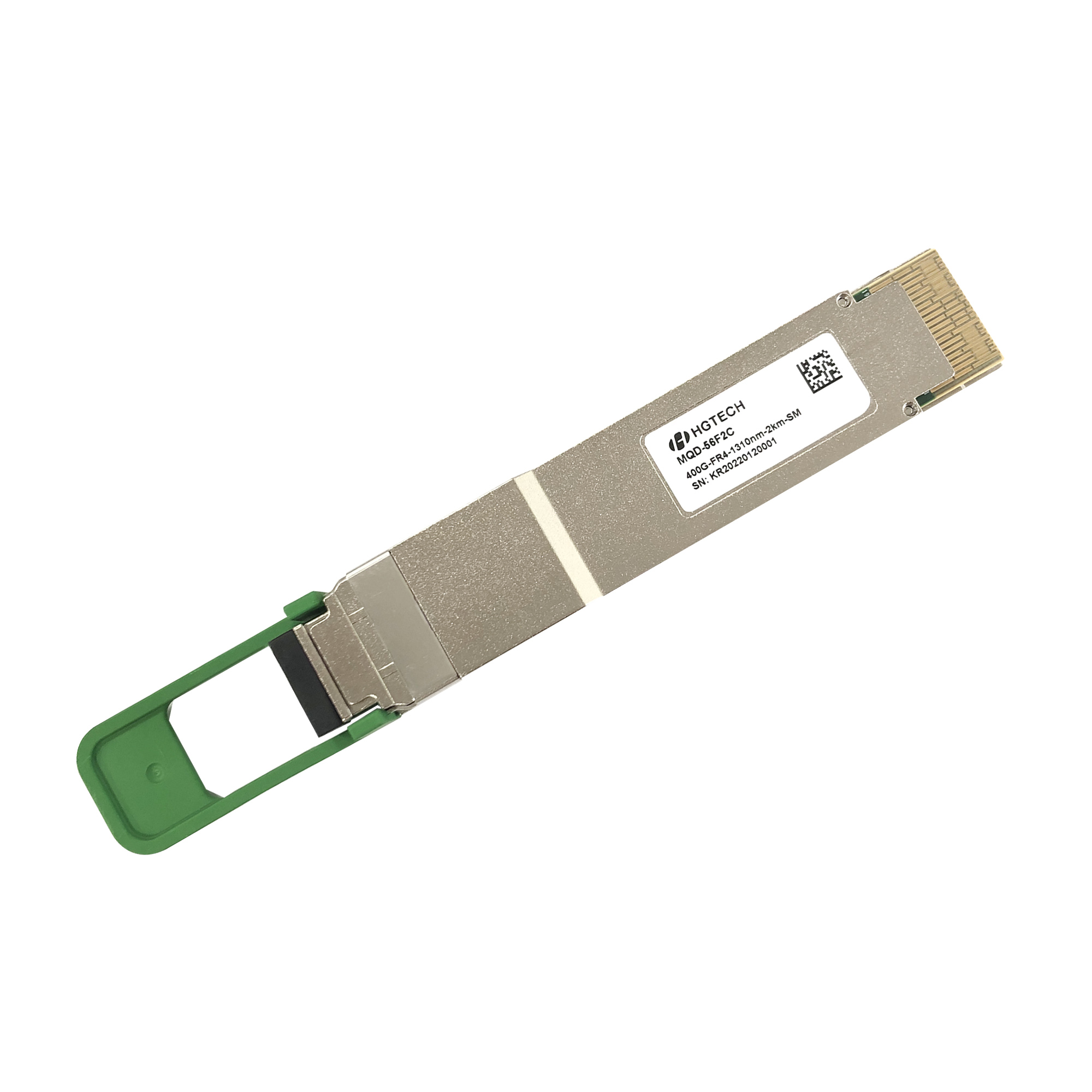

- MQD-56F2C-1 QSFP-DD FR4 8x53.125Gb/s 1271/1331nm 2km 0-70℃ <11w
- ATRE-6xxx QSFP-DD AOC 400Gbps 850nm 1~70m（OM3) /1~100m（OM4) 0-70℃ <8.5w per cable end
- MQD-12F1C QSFP-DD SR8 400Gbps 850nm 70m(OM3)/100m(OM4) 0~70℃ <8.5W
- CTR-D1F2C QSFP-DD ZR 400GbE 1528~1567nm 120km 0-75°C <18w
- CTR-D2F5C-A QSFP-DD ZR+ 400GbE 1528~1567nm 450km 0-75°C <22.5w
- CTR-D2F5C-B QSFP-DD ZR+ Pro 400GbE 1528~1567nm 120km 0-75°C <22.5w
- CTR-D2F5C-C QSFP-DD ZR+ Pro Gray 400GbE 1528~1567nm 120km 0-75°C <22.5w
- CTR-B3F4C CFP2 DCO 400GbE 1528~1567nm 400km 0~70℃ <29.5w
- MQD-77F2C QSFP-DD LR4-10 400GbE 1271/1291/1311/1331nm 6km 0~70℃ <10w
- MTRQ-4D505 QSFP112 DR4 4x106.25Gb/s 1310nm 500m 0~70℃ <9w
- MTRQ-4S105 QSFP112 SR4 53.125 GBd 850nm 100m 0~70℃ <8w
- MTRQ-4S105-L SR4 QSFP112 Linear 53.125 GBd 850nm 100m 0~70℃ <3w
- MQD-F2F2C QSFP-DD SR4 400Gbps 850nm 100m 0~70℃ <8w
-
200G~50G
- MTRA-4C33A-XX SFP56 CWDM 26.6GBaud 1271/1291/1311/1331/1351...nm 10km -20~85°C/0~70°C ＜2.5w
- MBS-AC31-27/33 SFP56 BiDi 26.6GBaud 1270/1330nm 10km -40~85°C <1.8w
- MTRA-4E31A SFP56 LR 53.125Gbps 1310nm 10km -40~85℃ <1.8w
- MTRA-4E31B SFP56 LR 26.6GBaud 1310nm 10km -40~85°C <2w
- MTRQ-1LA02 QSFP28 PAM4 50Gbps 1310nm 10km 0-70℃ ＜3.5w
- MTRQ-1LA02-xxB QSFP28 SM PAM4 BIDI 50Gbps 1271/1331nm 10km 0-70℃ ＜3.5w
- MTRQ-1LA03 QSFP28 LR1 100Gbps 1310nm 10km 0-70℃ <4.5W
- MTRQ-1FF5 QSFP28 FR1 100Gbps 1310nm 2km 0-70℃ <4.5W

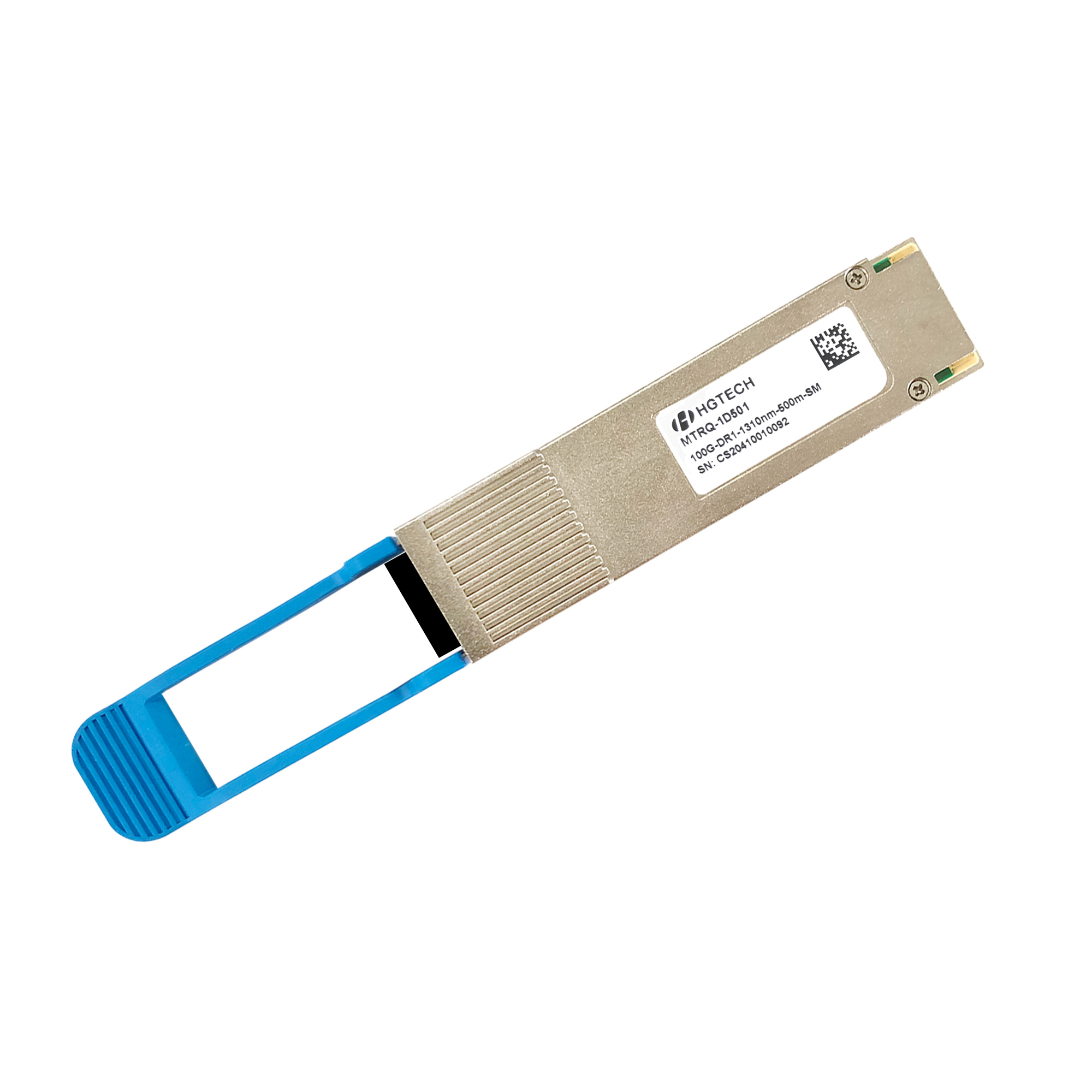

- MTRQ-1D501 QSFP28 DR1 100Gbps 1310nm 500m 0-70℃ ＜4w
- MTRQ-4ZA81 QSFP28 ZR4 100Gbps LAN-WDM 80km 0-70℃ <6.5w
- MTRQ-4LA01 QSFP28 LR4 100Gbps LAN-WDM 10km 0-70℃ <4w
- MTRQ-4CF51 QSFP28 CWDM4 100Gbps CWDM 2km 0-70℃ ＜3.5w
- ATRP-BXXX DSFP AOC 100Gbps 850nm 1~50m（OM3) /1~70m（OM4) 0-70℃ <2.5w per cable end
- MTRQ-4S101 QSFP28 SR4 100Gbps 850nm 70m(OM3)/100m(OM4) 0-70℃ <2.5w
- ATRQ-AXXX QSFP28 AOC 100Gbps 850nm 1~70m（OM3) /1~100m（OM4) 0-70℃ <2.5w per cable end
- MTRQ-4S1E1 QSFP28 SR4 (EBO) 100Gbps 850nm 70m(OM3)/100m(OM4) 0-70℃ ＜2.5w
- ATRQ-7XXX QSFP56 AOC 200Gbps 850nm 1~70m（OM3) /1~100m（OM4) 0-70℃ <4.5W per cable end
- MTRQ-4S104 QSFP56 SR4 200Gbps 850nm 70m(OM3)/100m(OM4) 0~70°C ＜5W
-
25G~50G
- MTRA-3C33A-XX SFP28 CWDM 25Gbps 1271/1291nm...... 10km -20~75°C/85°C <1.8w
- MTRA-3L31A-XX SFP28 LWDM 25Gbps 1269.23/1273.54nm...... 10km -40~85°C <1.8w
- MTRA-3A90A SFP28 SR 25Gbps 850nm 70m(OM3)/100m(OM4) 0-70℃ <1w
- ATRS-2XXX SFP28 AOC 25Gbps 850nm 1~70m（OM3) /1~100m（OM4) 0-70℃ <1w per cable end

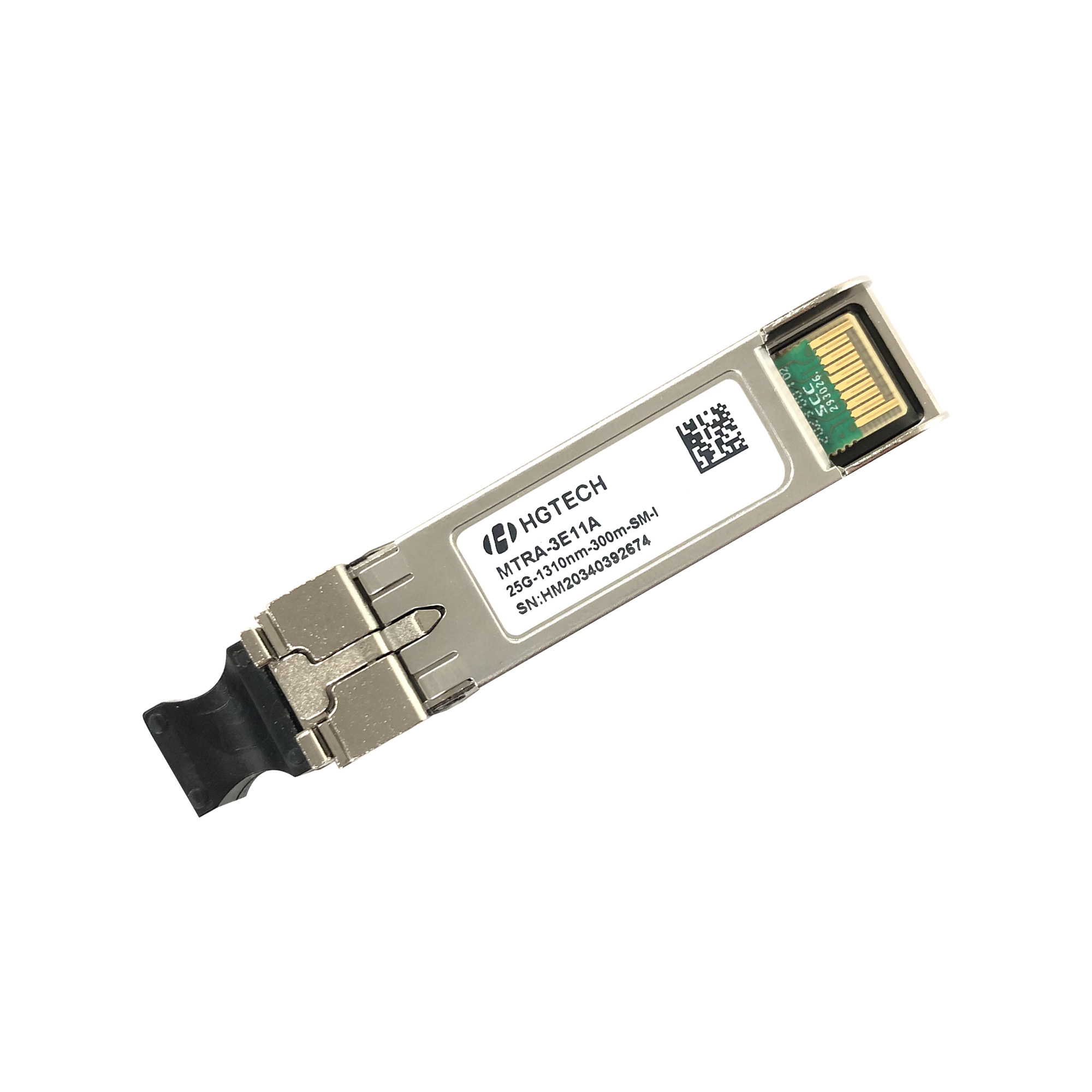

- MTRA-3E11A SFP28 MSA 25Gbps 1310nm 300m -40~+85°C 1.0W
- MBS-7C31-27&33 SFP28 LR Bidi 25Gbps 1270/1330nm 10km -40~85°C <1.2w
- MTRA-3T33 SFP28 LR Tunable 25Gbps DWDM 10km -20~85°C ＜2.5w
- MTRA-3E31A SFP28 LR 25Gbps 1310nm 10km -40~85°C ＜1.0 W
- MTRA-3A90B SFP28 SR 28.05Gbps 850nm 70m(OM3)/100m(OM4) 0-70℃ <1w
- MTRQ-4Sx00 QSFP+ SR4 40Gbps 850nm 300m（OM2) 0-70℃ <1.5w
- ATRQ-4xxx QSFP+ AOC 40Gbps 850nm 1~100m（OM2) 0-70℃ <1.5w per cable end
-
<25G
- MTRS-2D60-xx SFP+ ER DWDM 10Gbps DWDM 40km 0-70℃ <2w

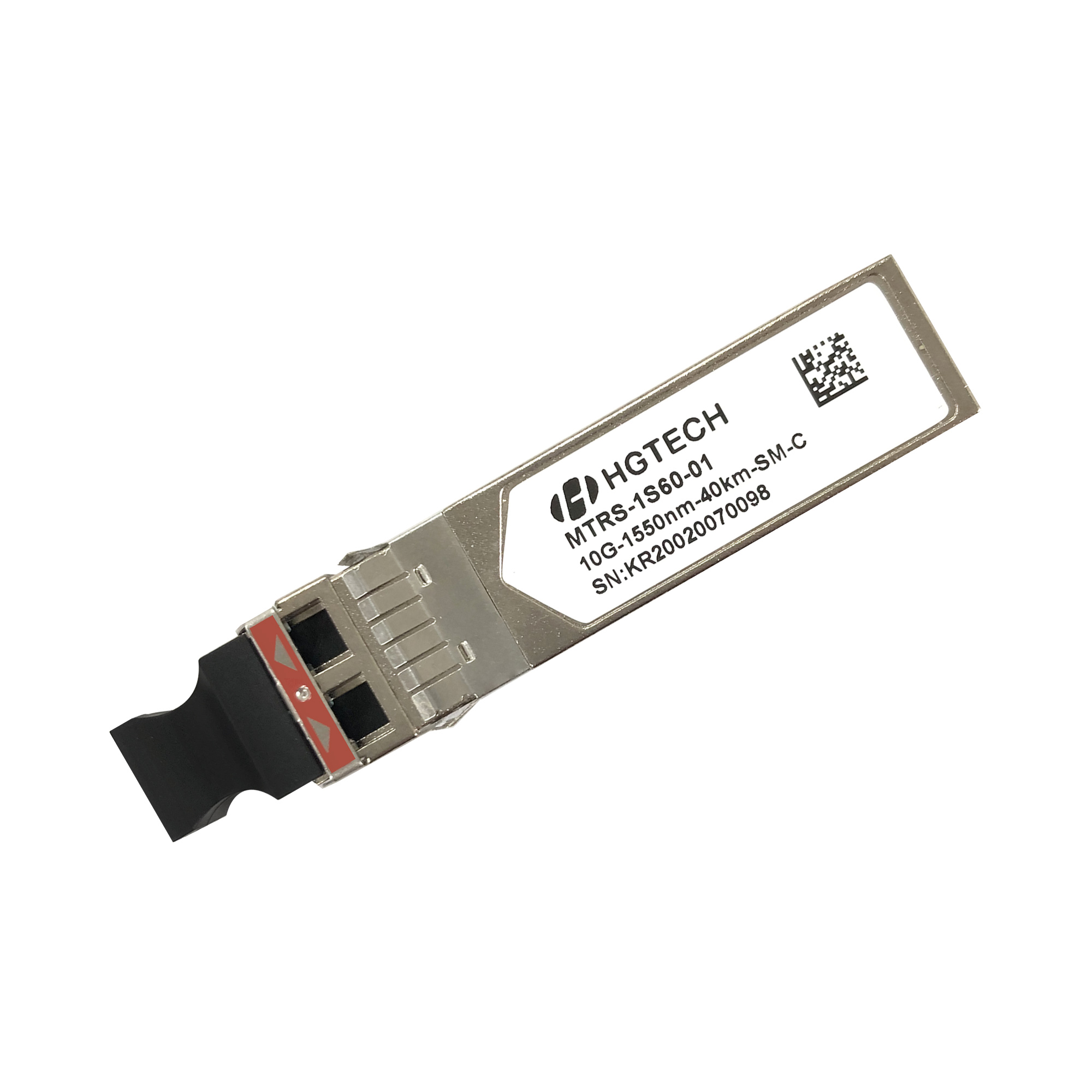

- MTRS-1S60-01 SFP+ ER 10Gbps 1550nm 40km 0-70℃ <1.5w
- MTRS-02X13-G SFP+ LR 10Gbps 1310nm 10km 0-70℃ <1w
- MTRS-2E30-01 SFP+ LR SONET 10Gbps 1310nm 10km 0-70℃ <1.2w
- MTRS-1A11-01 SFP+ SR IT 10Gbps 850nm 300m -40~85°C <1w
- MTRS-1E21-01 SFP+ 10Gbps 1310nm 1.4km -40~+85°C 1.0W
- MTRS-1E31-01 SFP+ 10Gbps 1310nm 10km -40~+85°C 1.0W
- MTRS-1S70-01 SFP+ 10Gbps 1550nm 80km 0~+70°C 1.5W
- MTRS-2S60-01 SFP+ 10Gbps 1550nm 40km 0~+70°C 1.8W
- MTRS-01X11-G SFP+ 10Gbps 850nm 300m 0~+70°C 1.0W
- MBS-1C41-33 SFP+ BiDi 10Gbps 1330nm 10km -40~+85°C 1.2W
- MBS-1C41-27 SFP+ BiDi 10Gbps 1270nm 10km -40~+85°C 1.2W
- MTRS-2T60-01 TSFP+ ER 10Gbps 1529.163~1567.133nm 40km 0~75°C <2.1w
- MTRS-2T77-AAA TSFP+ ZR 10Gbps 1529.163~1567.133nm 80km -5~85°C <2.5w
- MTRA-1AA0A SFP+ SR 14.025Gbps 850nm 100m(OM3) 0-70℃ <1w
-
Coherent
- CTR-D1E2C-A QSFP-DD ZR Pro 800Gbps 191.3-196.1GHz Grid 120km 0~75°C <27w
- CTR-D2E5C-B QSFP-DD ZR+ Pro 800Gbps 150GHz Grid 480km 0~75°C <28w
- CTR-E1E2C-A OSFP ZR Pro 800Gbps 191.3-196.1GHz Grid 120km 0~75°C <27w
- CTR-E2E5C-B OSFP ZR+ Pro 800Gbps 150GHz Grid 480km 0~75°C <28w
-
1.6TGenuine Optics 's 1.6T high speed optical module products use in-house silicon photonics chips.
-
800G
800G transceiver is a high performance,cost effective module.
-
400GGenuine optics 400G series products are high performance, cost effective module.
-
200G~50GGenuine optics 25G-200G series products are high performance, cost effective module.
-
25G~50GGenuine optics 25G,32G,40G series products are high performance, cost effective module.
-
<25GGenuine optics 10G series products are high performance.
-
CoherentGenuine optics coherent series products are high performance.
